Efficient Vacuum Conveyor for Powder Product Conveying

Description

Vacuum conveyor uses vortex air pump/Roots fan to pump air, make the inlet of the suction nozzle and the entire system in a certain vacuum state, then the powder and granular materials will be sucked into the nozzle along with the outside air to form a flow of material, and pass through the suction pipe to the hopper, finally separate gas and material in the hopper. The separated materials enter the receiving equipment. Feeding-discharging is completed by continuously opening and closing the pneumatic three-way valve/scroll cylinder, and the opening and closing of the pneumatic three-way valve/scroll cylinder is controlled by the power control box.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

The vacuum conveyor is equipped with a compressed air blowback device. Each time the material is discharged, the compressed air pulse blows back the filter, to knock down the powder adsorbed on the surface of the filter, ensure the normal operation of the suction material

The filter is easy to disassemble and easy to clean

Solve the problem of powder leakage, environmentally friendly

Powder contacting parts made of 304 stainless steel

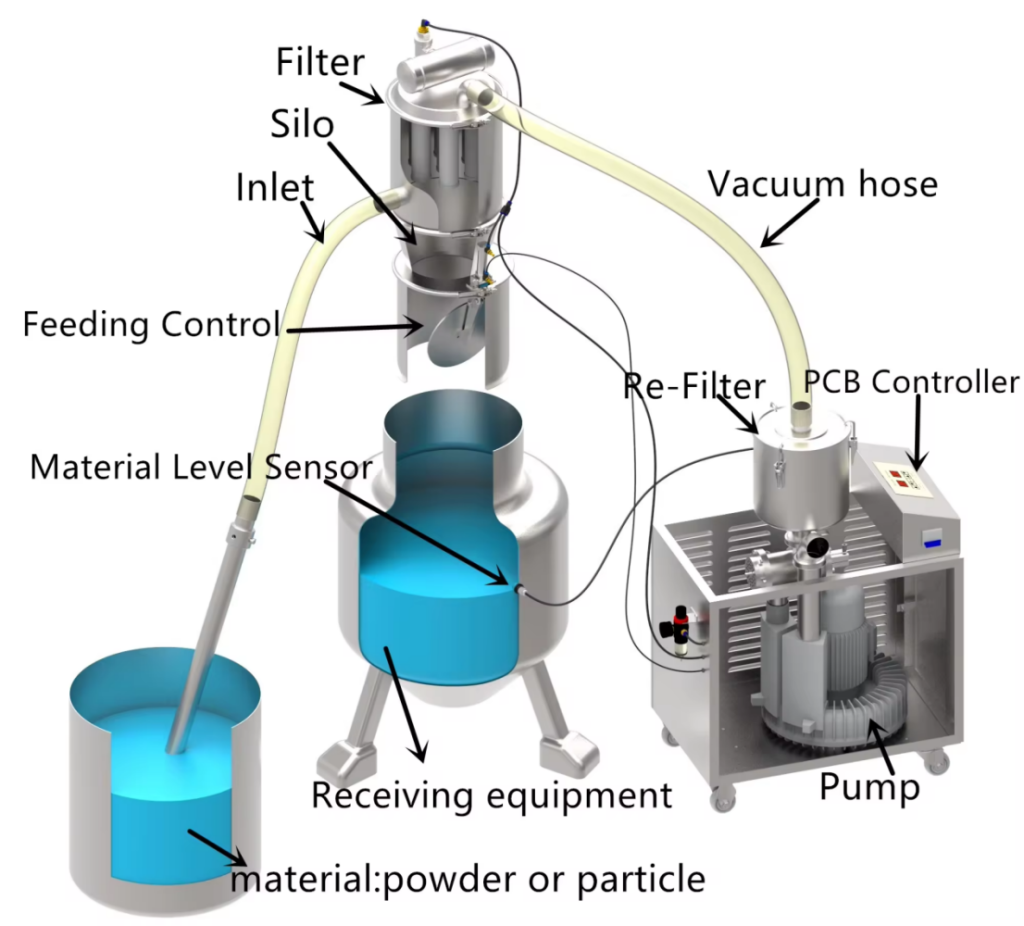

Construction

Parameter

Vacuum conveyor
Model	Delivey(kg/h)	Warehouse volume(L)	Operating pressure(Mpa)	Motor power(kw)
ZKS-3	500-800	12	0.4-0.6	5.5
ZKS-4	800-1200	42	0.4-0.6	7.5
ZKS-7	1500-2500	60	0.4-0.6	11.5
ZKS-10-6	About 6000（when transporting distance of 10m)	120	0.4-0.6	7.5(Roots Fan)
ZKS-20-5	About 5000 (when transporting distance of 10m)	280	0.4-0.6	11(Roots Fan)
